LoadRunner – Manual Scenario

LoadRunner - Manual Scenario Preparation

In the LoadRunner manual scenario, the scenario is designed manually. That means you manually instruct the LoadRunner that how many users to run and for how much duration and in what way the Vusers have to be started and ended. Based on the scenario the script results will be provided by LoadRunner, like response time, hits per sec, no. of Vusers running etc. To prepare the manual scenario for your load test you need to follow below steps:

1. Open “Controller”

Figure 01

2. Choose “Manual Scenario”

LoadRunner - Manual Scenario Option
Figure 02

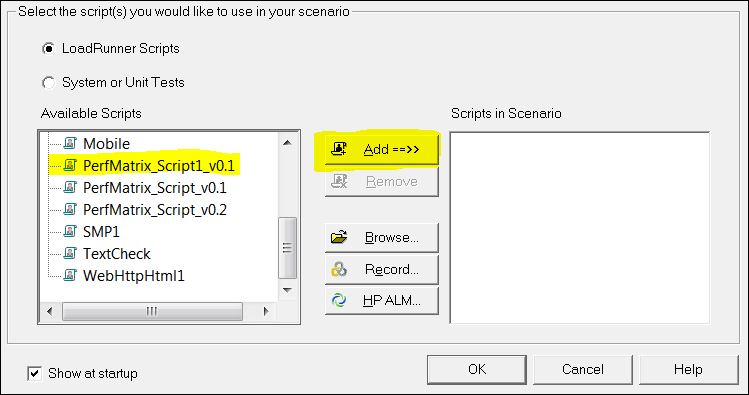

3. Choose and Add VuGen script(s)

LoadRunner - Manual Scenario - Add Script
Figure 03

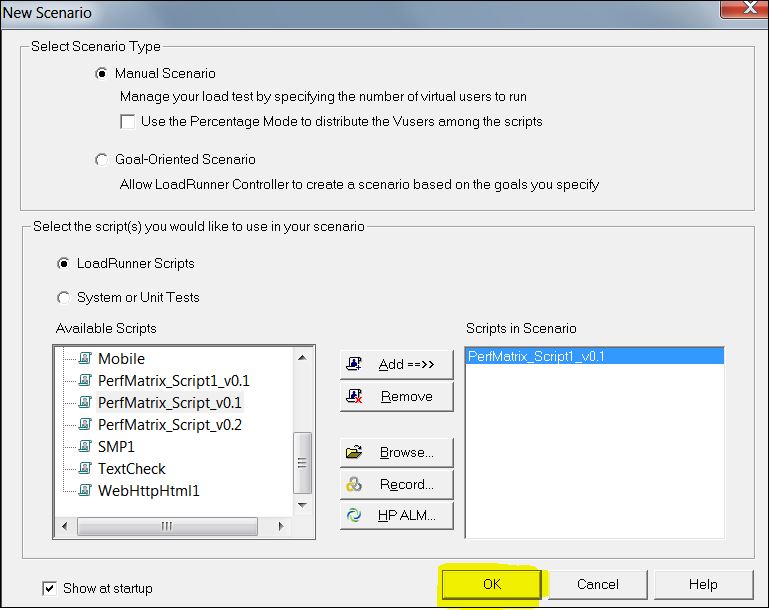

4. Click “OK”

LoadRunner - Manual Scenario - Script
Figure 04

5. Go to “Scenario Schedule”.

6. Provide the name of scenario (e.g. ‘Perfmatrix’ in below screenshot).

7. Select “Schedule by” and “Run Mode” as per your requirement.

LoadRunner - Manual Scenario Preparation
Figure 05

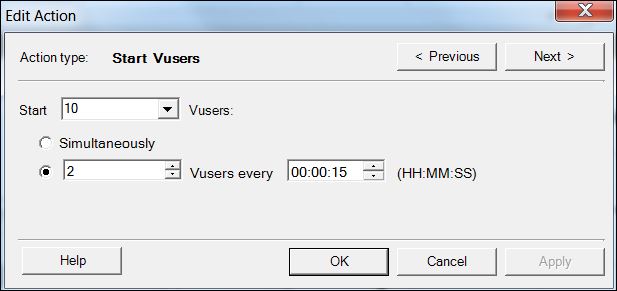

8. Set the no. of Vusers by clicking “Edit Action” button.

LoadRunner - Manual Scenario - Scheduler
Figure 06
Figure 07

9. You can also add new actions by clicking “Add Action” button.

Figure 08
LoadRunner - Manual Scenario - Action
Figure 09

10. Similarly, you can delete any action by clicking “Delete Action” button.

Figure 10

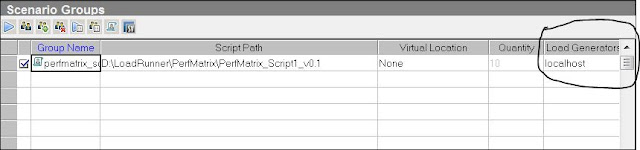

11. Select the load generator.

Figure 11

12. If you want to overwrite runtime then use “Run-time setting” options, this will overwrite VuGen run-time setting.

Figure 12

That’s all. Likewise, you can create your performance test scenario (manually). The next step will be to execute the test.
