Vector Addition

Overview

Vector addition is a fundamental concept in both physics and mathematics, and it plays a huge role in understanding directions and forces. What makes vector addition important is how often it pops up in the real world—whether you’re studying motion, designing video games, or building artificial intelligence systems. If you’ve ever tried to walk diagonally across a field, you’ve already experienced the idea of adding vectors, even if you didn’t know it.

Vector Addition

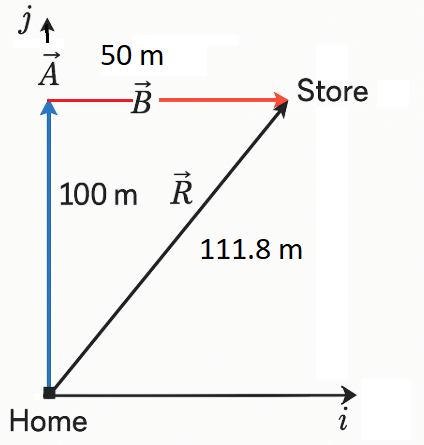

Let’s start with what a vector is. A vector is something that has both a magnitude (how much) and a direction (where to). Think of it like this: Imagine using Google Maps to walk from your home to a store. First, you walk north for 100 meters, then turn east for 50 meters. Your total movement isn’t just two separate steps—it’s a combined path. That’s vector addition in action!

How do we add vectors?
There are two main methods:

Method 1: Graphical Method (Tip-to-Tail):

  • Draw the first vector.
  • Place the second vector’s tail at the tip (end) of the first.
  • Draw a new vector from the start of the first vector to the end of the second. That’s your result!

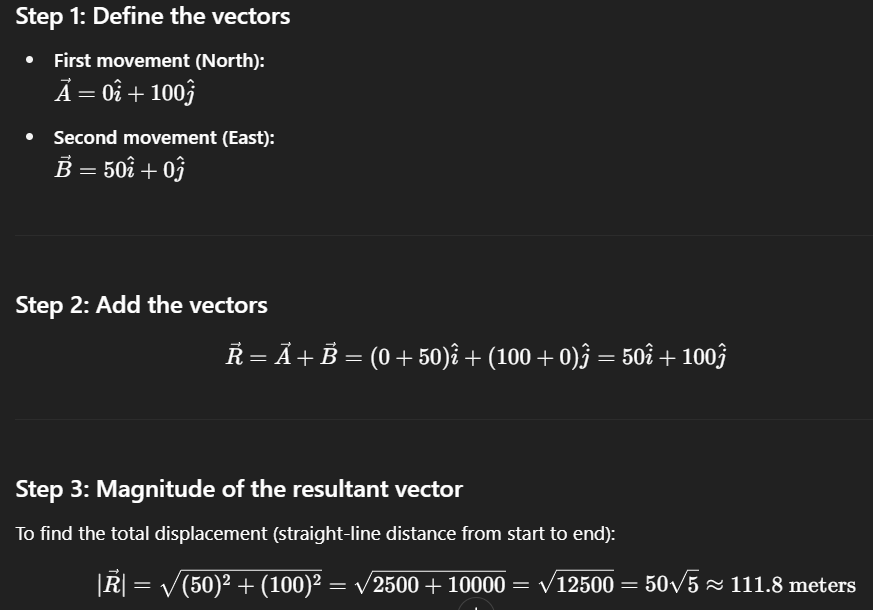

Method 2: Mathematical Method (Using Components):

  • Break each vector into horizontal (x) and vertical (y) parts.
  • Here,
    • î (i-hat): The unit vector pointing along the positive x-axis.
    • ĵ (j-hat): The unit vector pointing along the positive y-axis
  • Add the x-parts (î) together and the y-parts (ĵ) together.
  • Combine the new x and y parts into the final vector.
Vector Addition in Artificial Intelligence

In Artificial Intelligence:
Vector addition is used in machine learning and robotics.

For example, when a self-driving car figures out where to move, it combines different direction vectors—like from sensors, GPS, and maps—to choose the safest path. Even neural networks use vectors to process and combine information during learning.

Below is simple Python code to add 2 vectors using the NumPy library. Please note that NumPy (Numerical Python) is a powerful open-source Python library used for numerical and scientific computing.

import numpy as np

# Define two vectors
vector1 = np.array([1, 2, 3])
vector2 = np.array([4, 5, 6])

# Add the vectors
result = vector1 + vector2

# Print the result
print("Vector 1:", vector1)
print("Vector 2:", vector2)
print("Sum of vectors:", result)

Output:

Vector 1: [1 2 3]
Vector 2: [4 5 6]
Sum of vectors: [5 7 9]

Conclusion:

To sum up, vector addition helps us understand movement and direction. It’s a key tool not only in physics but also in modern technologies like artificial intelligence. It’s amazing how something as simple as combining steps in different directions can help a robot learn how to move or help AI process data.

Try This:
Take a pencil and draw two arrows: one pointing up (5 cm) and one to the right (3 cm). Now, draw the third arrow that shows the direct path from the start to the final position. That’s your result vector! Can you estimate its direction and length?
